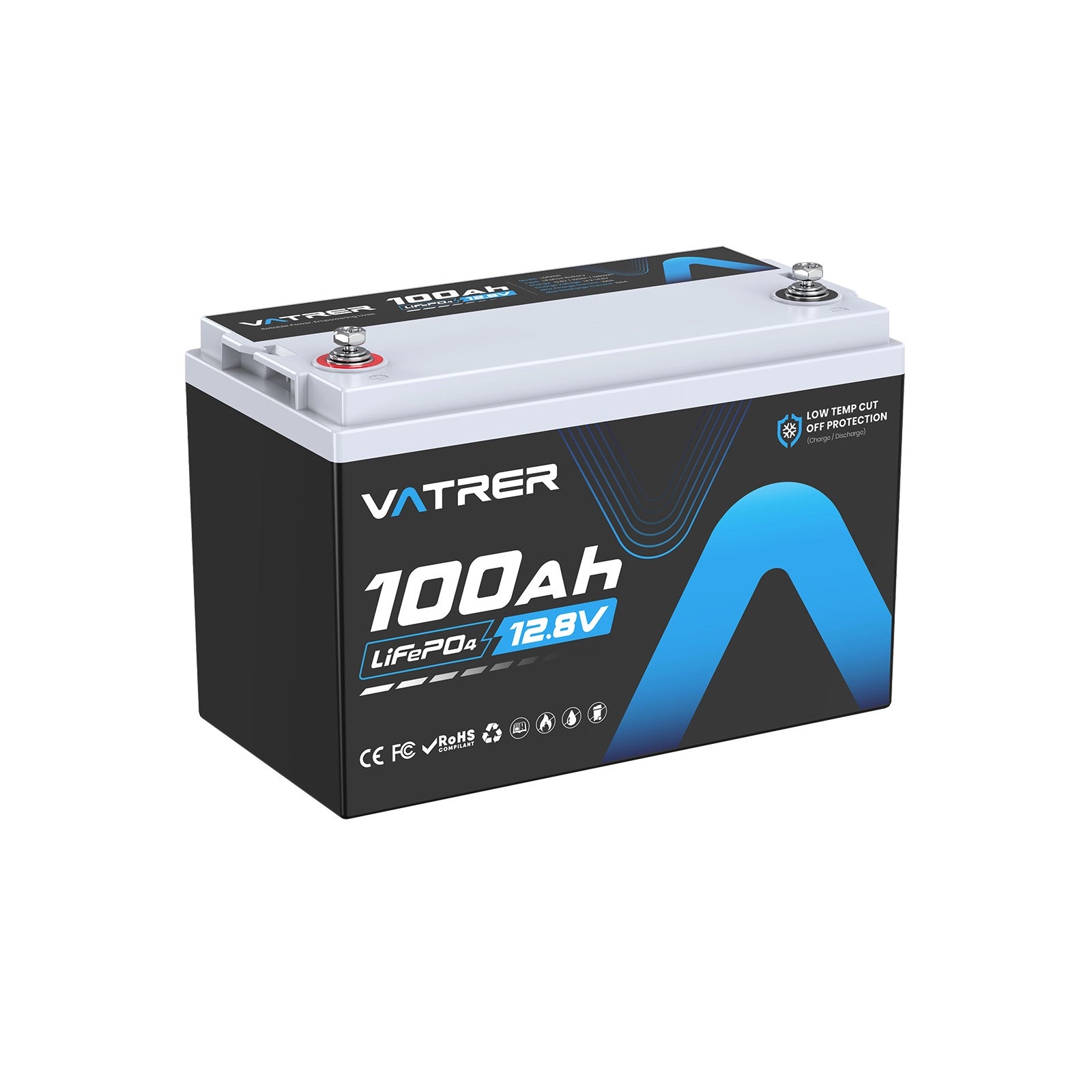

Vatrer 12V 100Ah Low Temp Cutoff LiFePO4 Lithium Battery EU
● Over 5000 cycles and a 10+ year lifespan.
● Built-in 100A Smart BMS, Low-Temp charging protection and low 3% self-discharge.
● 1280Wh energy, 1280W output, lightweight at 24.20 lbs.
● 3 charging methods, 10X faster charging.
● 100A Max Continuous Discharge (300A 3-5s Peak Discharge).
● Series/parallel setup for up to 20.48kWh.
● Group 31 size(L12.95*W6.77*H8.42 inches), ideal for RVs, solar, home storage.
● IP65 waterproof.
● Zero Maintenance, Environment Friendly.
● ground fast delivery, 24/7 online service.
● Meets FCC, CE, RoHS, UN38.3 standards.
● Note: Best for energy storage, not engine starting.
Safety Certifications
Durable and Efficient Power Solution
Experience unmatched performance with the Vatrer 12V 100Ah Lithium Battery, designed for longevity and reliability. Featuring a 100A max continuous discharge, over 5000 life cycles, and 1.28kWh of usable energy, this IP65 waterproof battery ensures a maximum continuous load power of 1.28kW. Ideal for demanding applications where durability and efficiency are paramount.

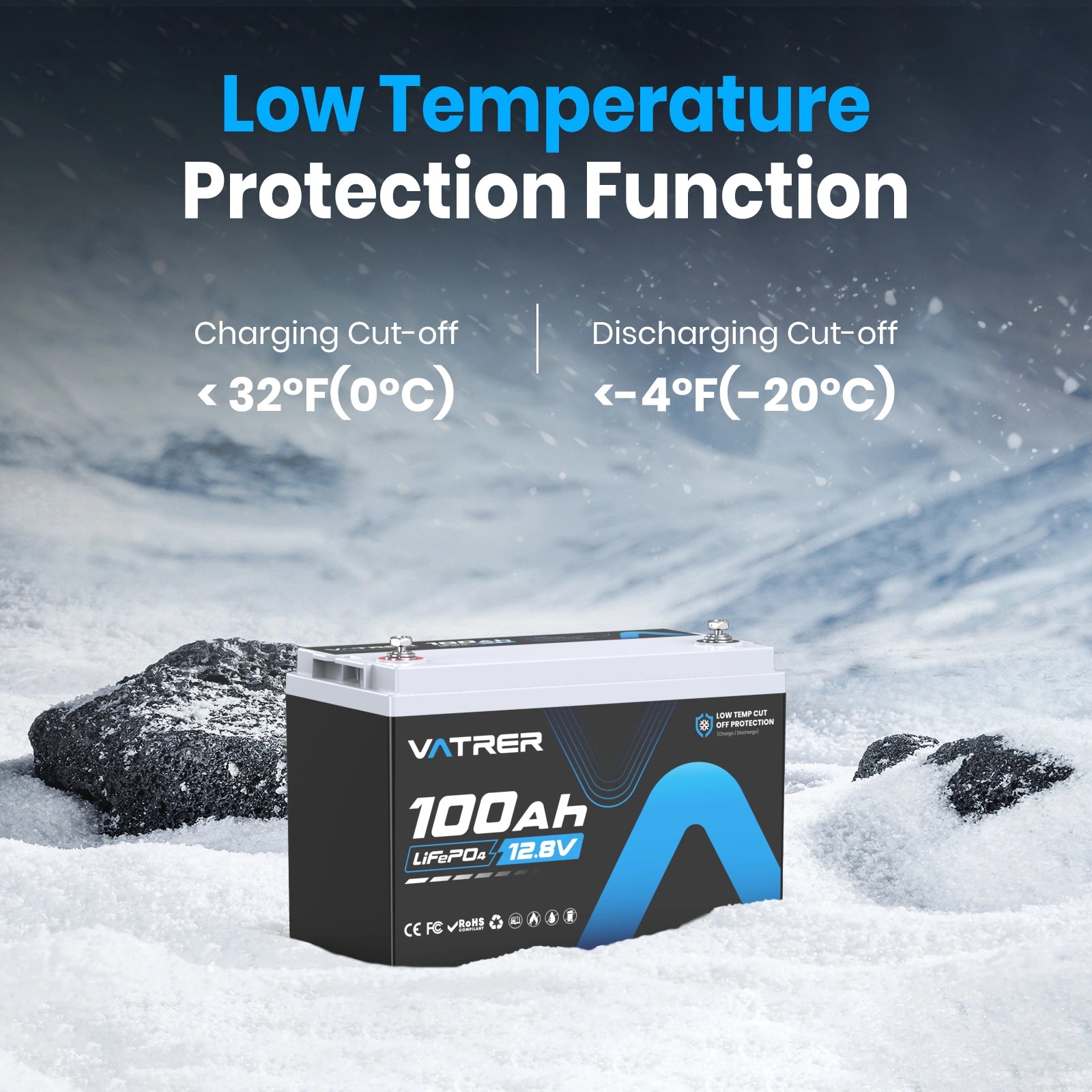

12V Lithium Battery with Advanced Low Temperature Cutoff Protection
Maximize your energy use with the Vatrer 12V 100Ah Lithium Battery, featuring sophisticated low temperature cutoff protection. Designed to charge above 32°F (0°C) and automatically stop charging below this threshold to prevent damage, it resumes charging above 41°F (5°C). This smart feature ensures safety and longevity, making it perfect for use in cold climates. Ideal for powering RVs, solar systems, and more, where dependable energy is crucial.

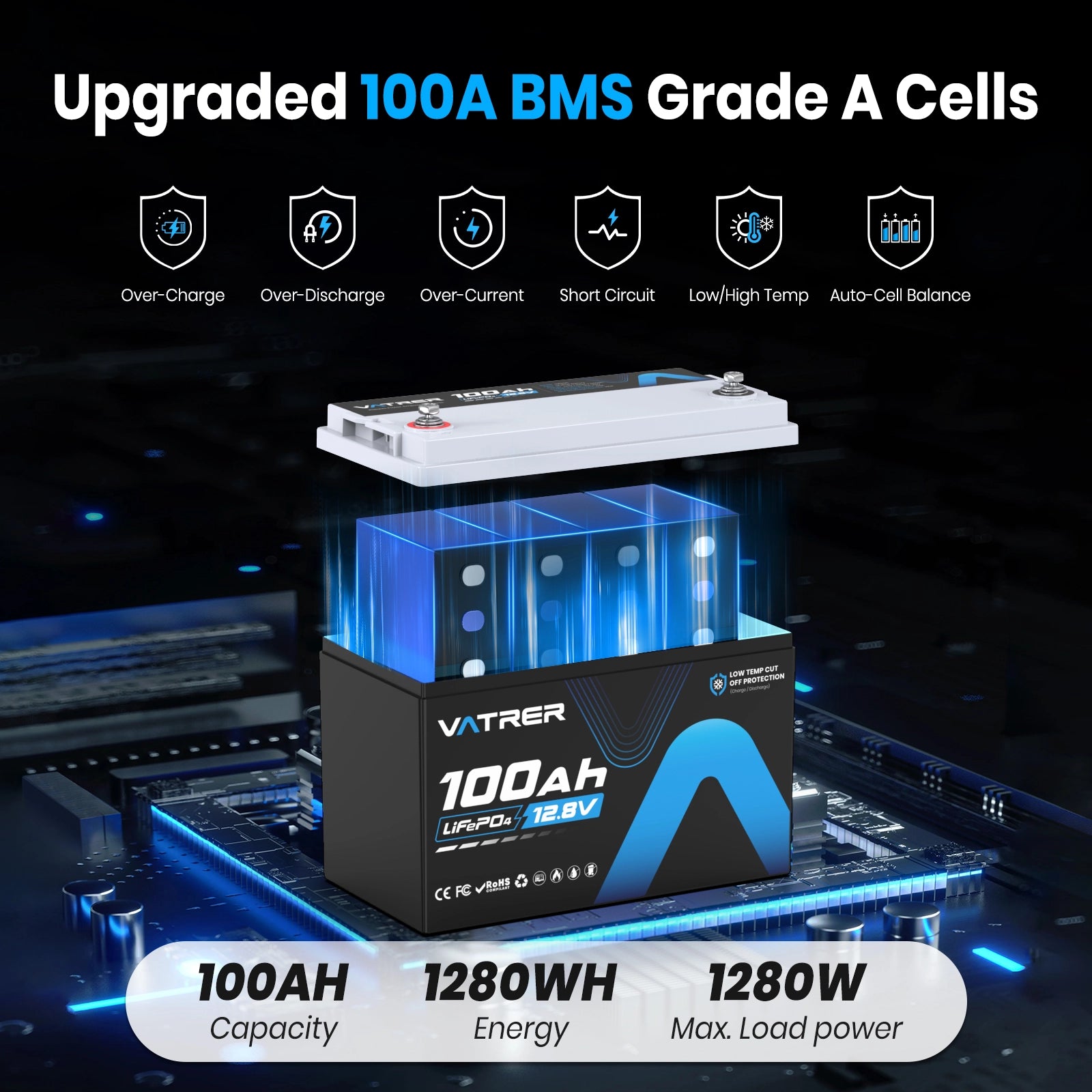

Built-In 100A BMS for Full Protection
Secure and efficient, the Vatrer 12V 100Ah LiFePO4 Lithium Battery is equipped with a robust 100A BMS, offering comprehensive safety features including overcharge, discharge, overcurrent, and short circuit protection. It boasts a high discharge and charge capacity with a 300A 5-second peak and continuous 100A output, complemented by temperature protection for reliable performance under various conditions. Ideal for high-demand applications where power and protection are paramount.

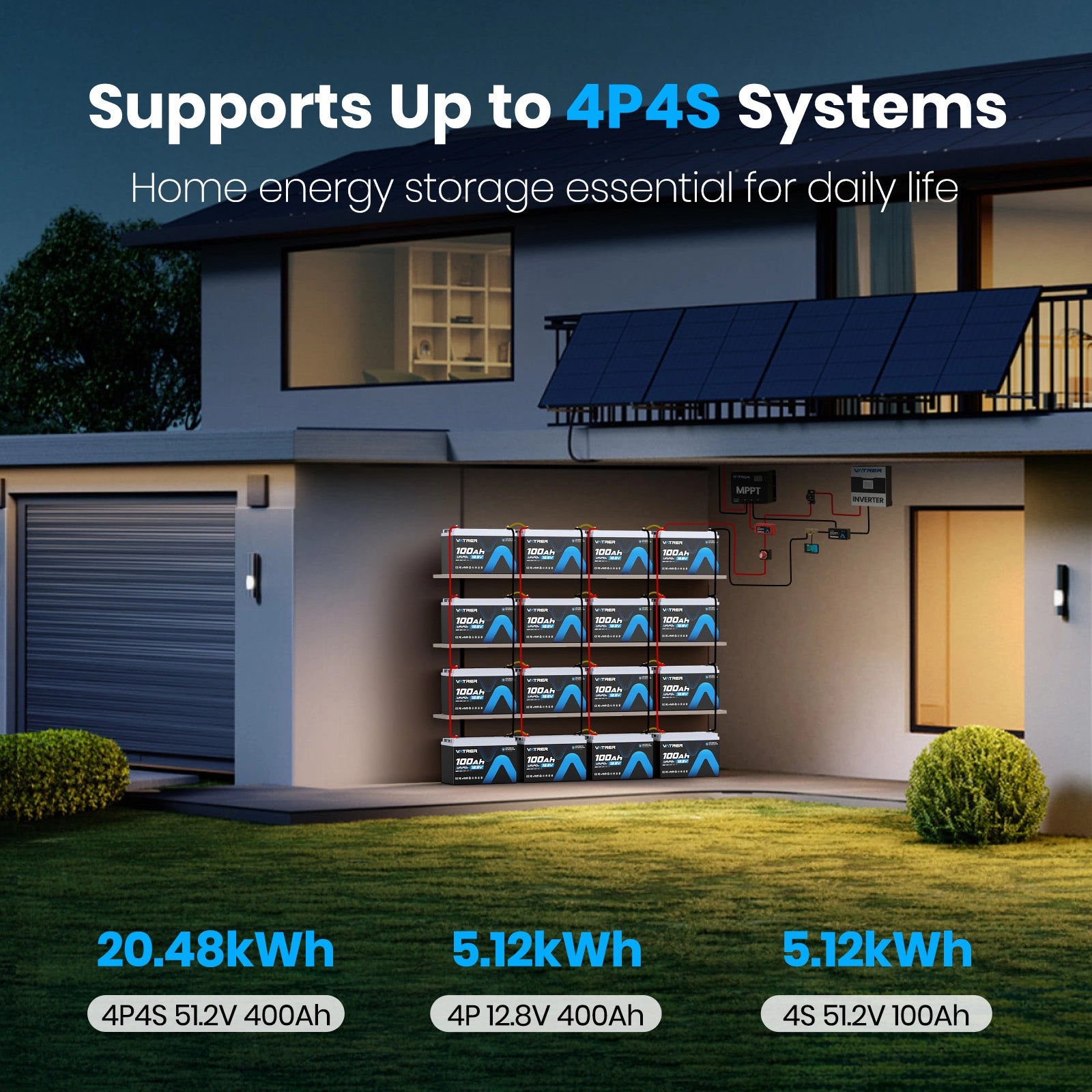

Expandable Power System up to 20.48kW
Unlock exceptional scalability with the Vatrer 12V 100Ah LiFePO4 Lithium Battery, capable of configurations up to 4 in series and 10 in parallel to achieve a maximum of 20.48kWh energy and 20.48kW load power. Designed for high-efficiency applications, this battery features low temperature cutoff protection, ensuring safe and reliable performance in diverse operating conditions. Perfect for larger power systems needing robust, expandable energy solutions.
Versatile Charging Options for On-the-Go Power
The Vatrer 12V 100Ah Low Temp Cutoff LiFePO4 Lithium Battery offers flexible, convenient charging solutions, including compatibility with generators, DC-DC chargers, and solar panels via an MPPT controller. With a specific LiFePO4 charging mode at 14.6V, this battery ensures efficient energy absorption and storage, making it ideal for recharging anytime, anywhere. Perfect for powering diverse loads, this battery enhances portability and reliability in all your adventures.
How Long Does it Take to Fully Charge?
Keep your Vatrer 12V 100Ah Low Temp Cutoff LiFePO4 Lithium Battery charged and ready with multiple quick charging solutions. Charge efficiently with 300W solar panels in just 4.27 hours, or speed up the process with 600W panels reducing the time to 2.13 hours. For more traditional methods, utilize a 14.6V 20A charger for a full charge in 5 hours, or a 14.6V 40A charger to power up in only 2.5 hours. This battery's flexibility ensures you can maintain energy levels conveniently, no matter where you are.

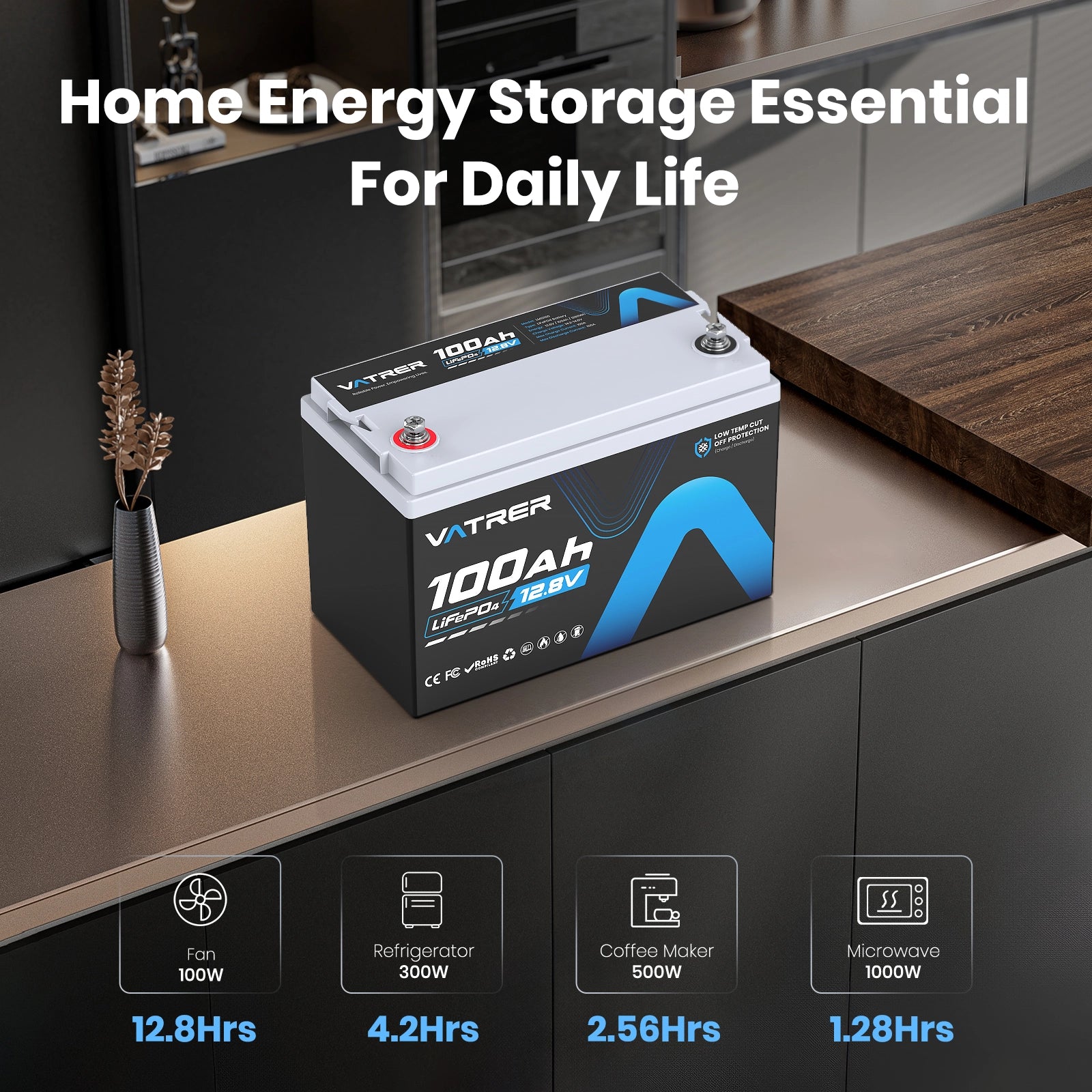

Ideal for All Your Power Needs
The Vatrer 12V 100Ah Low Temp Cutoff LiFePO4 Lithium Battery is a versatile powerhouse, perfect for a variety of applications. Whether integrated into a home solar power system, used in RVs, vans, motorhomes, or for camping, powering trolling motors in marine or boat systems, or supporting off-grid setups, this battery ensures reliable, efficient energy storage. Designed to meet diverse demands, it offers flexibility and durability wherever power is needed.
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 11KG / 24.2LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Charge: 0°C to 50°C (32°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C±4°C (32°F±7.2°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |

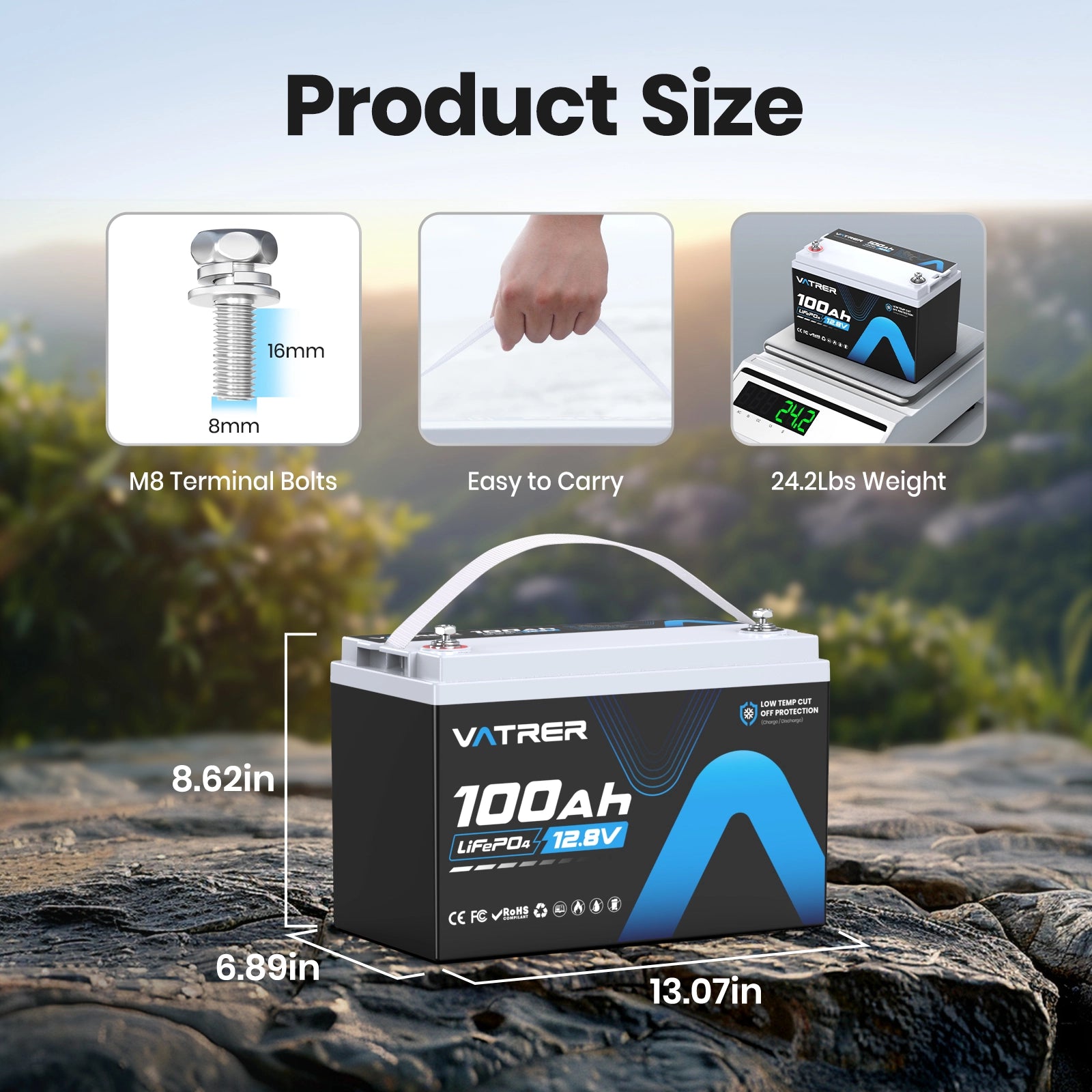

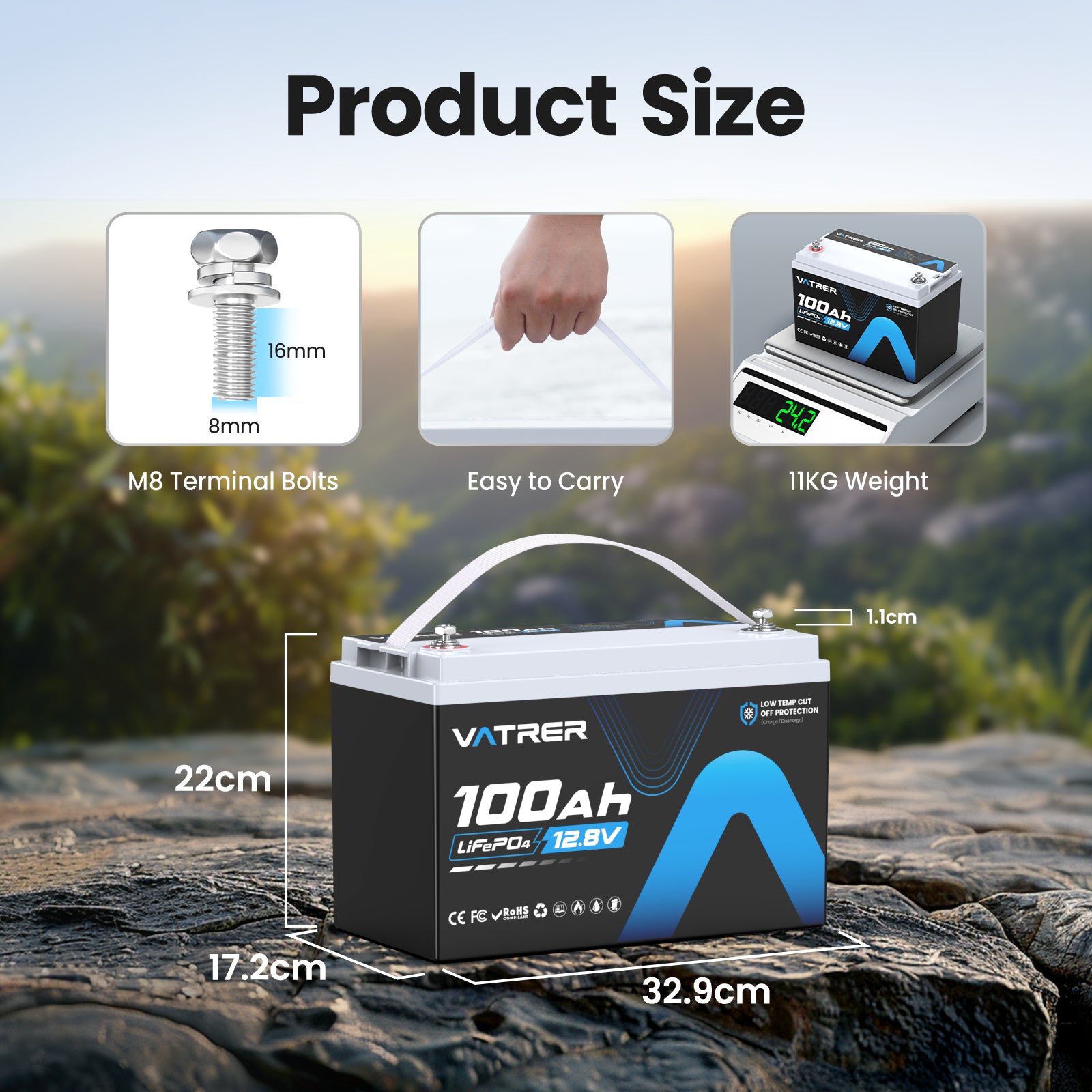

| Dimensions | 329x172x214 mm / 12.95x6.77x8.42 inch |
| Cycle Life | >=5000 Cycles |
| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, indeed! Our LiFePO4 battery comes equipped with a BMS that includes low temperature protection cut-off functionality. This feature ensures that your battery remains safeguarded against any potential damage caused by extremely cold temperatures. The low temperature cut-off protection for charging is set at 0°C ± 4°C (32°F ± 7.2°F), while for discharging, it is set at -20°C ± 4°C (-4°F ± 7.2°F).
For optimal charging of our LiFePO4 battery, we recommend using a lithium iron phosphate 4-string (14.6V) charger. This specific charger is designed to provide the appropriate voltage and charging characteristics for LiFePO4 batteries. However, if you prefer alternative charging methods, you can also utilize photovoltaic solar panels with an MPPT charger or an inverter with a built-in AC to DC charging function.
The BMS, or Battery Management System, plays a crucial role in the operation and safety of the LiFePO4 battery. It is responsible for various functions, including protecting the battery and the user from hazardous conditions such as low or high voltage, low or high temperatures, and short circuits. The BMS also ensures that all the cells within the battery pack remain balanced, allowing for optimal performance and longevity. Additionally, our BMS features a charge balancing function that reduces the charging rate for cells that have reached their capacity, enabling other cells to catch up and maintain the overall balance of the battery pack.

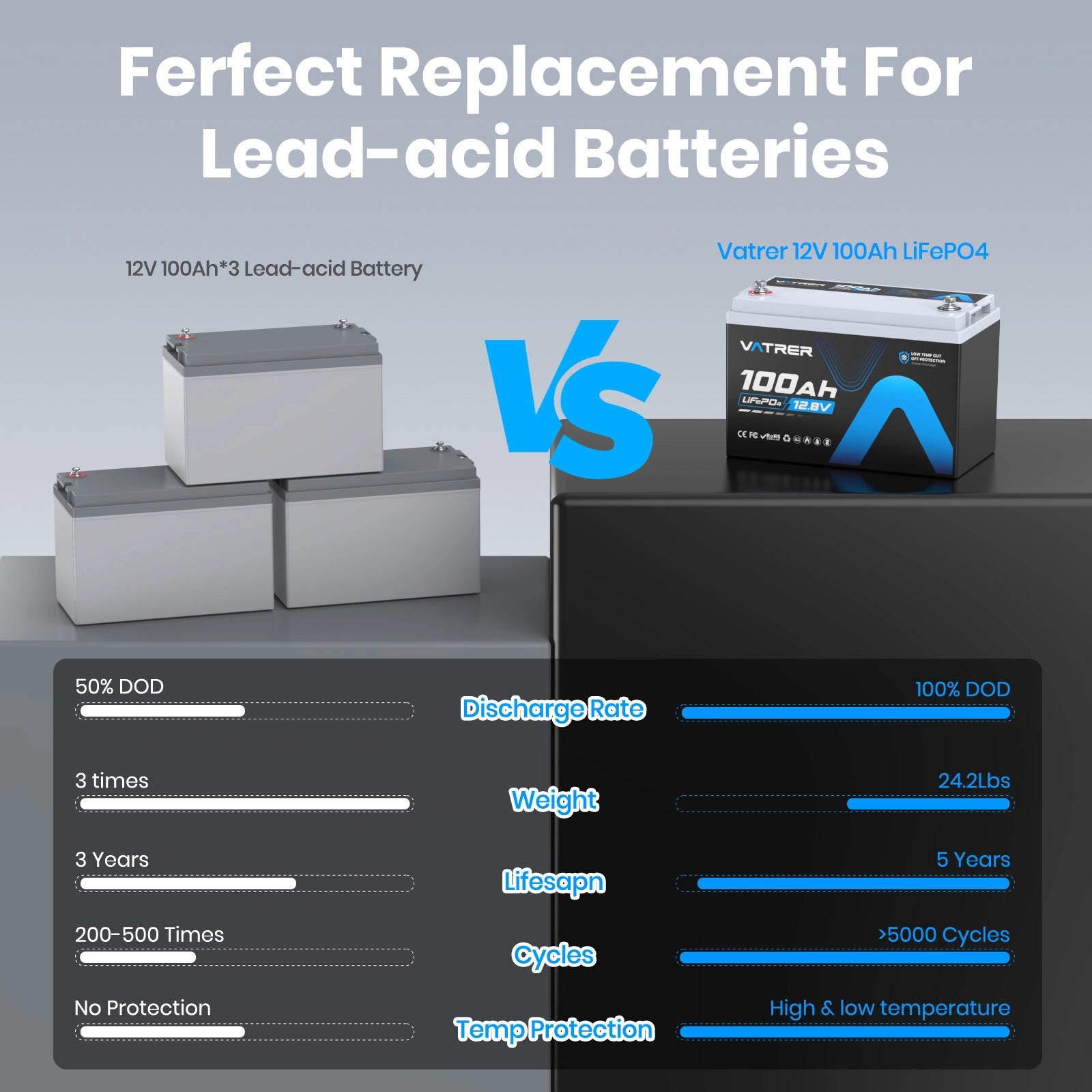

Our LiFePO4 lithium iron phosphate batteries have an impressive lifespan, providing a minimum of 5000 cycles at 100% depth of discharge (DoD). In more practical terms, this translates to a service life that is 8 to 10 times longer than standard lead-acid batteries. With proper care and usage, these batteries can serve you reliably for an extended period.
Absolutely! Our LiFePO4 batteries are designed with safety as a top priority. They are manufactured using automotive-grade LiFePO4 cells, offering higher energy density and enhanced stability compared to other battery chemistries. These batteries exhibit excellent safety characteristics, even under challenging conditions such as high temperatures, short circuits, impacts, and drops. The stable chemical structure of LiFePO4 ensures that the batteries do not burn or explode. Furthermore, our batteries have obtained UL Testing Certificates, assuring the highest level of safety. They are also environmentally friendly, containing no heavy metals or rare metals. Additionally, the built-in Battery Management System (BMS) provides comprehensive protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
Regrettably, our LiFePO4 battery is not designed to be used for jump-starting vehicles. However, it can serve as a reliable power supply for automobiles. To recharge your car, you may connect it to the LiFePO4 battery using a Jackery power supply cord, which can be purchased separately.
