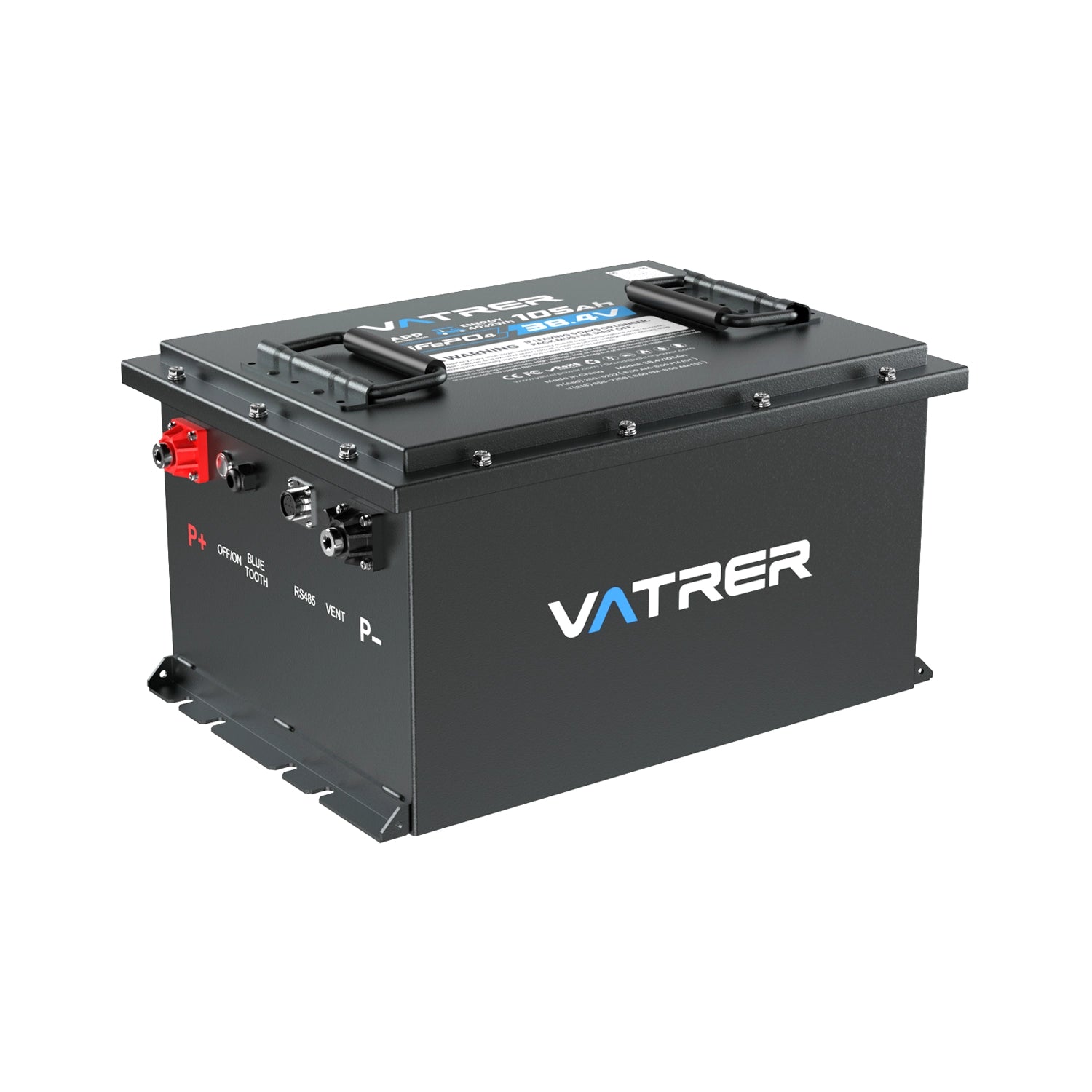

Vatrer 36V 105AH LiFePO4 Golf Cart Battery, 200A BMS, 4000+ Cycles, Max 7.68kW Power Output Lithium Battery EU
7680w power with low self-discharge rate, low capacity loss, and more stable performance, continuous discharge current up to 200A,(Peak 400A 35S)which is 50% more powerful than the other same-size lithium battery.
2.8-inch touch screen, viewing battery information in real-time.
With a battery management system enclosed, need no extra wiring.

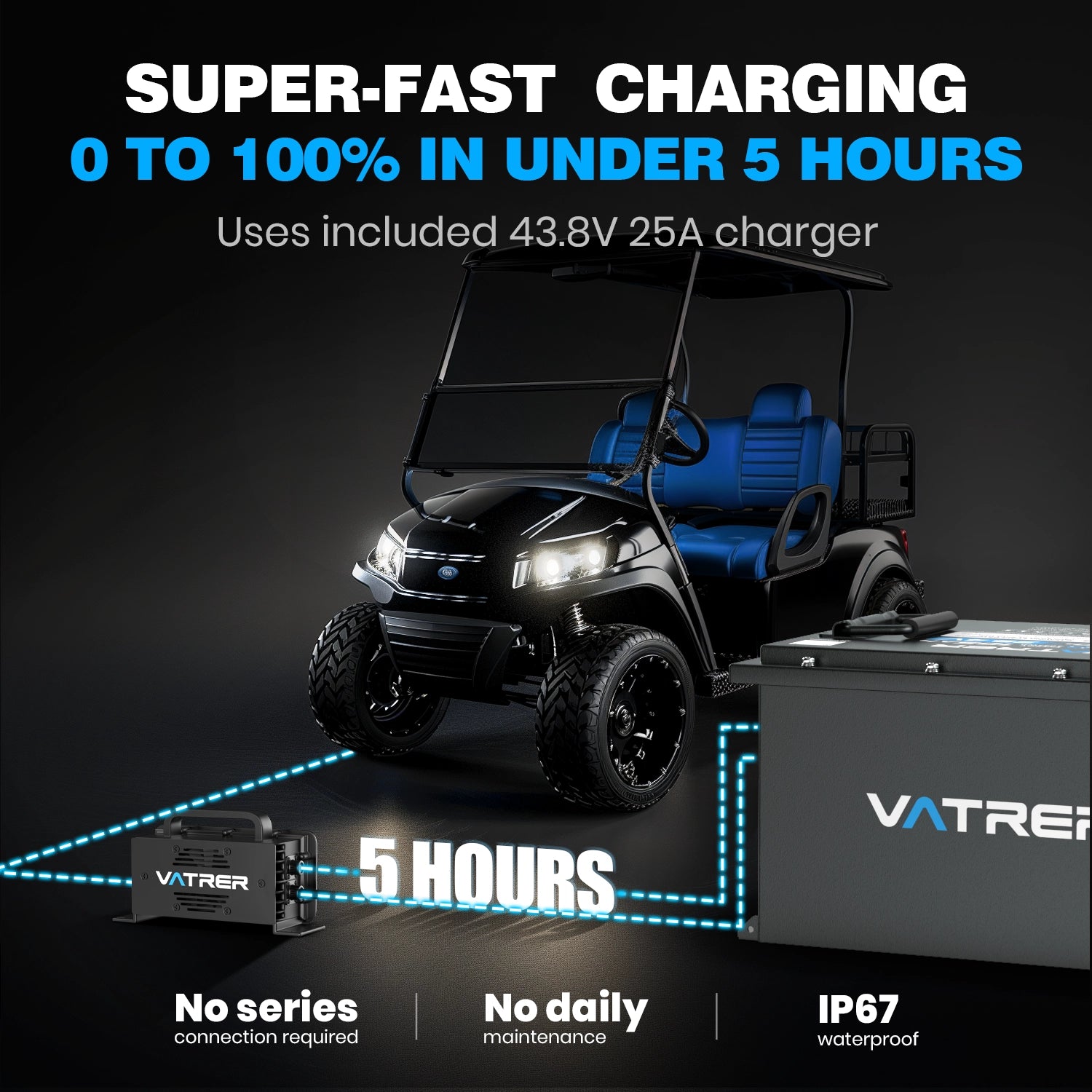

Comes with a 43.8V 25A LiFePO4 charger, which supports fast charging.
Built with LiFePO4 battery cells that are engineered to deliver superior performance & longevity
BUILT-IN BLUETOOTH FUNCTION, if there is a need for this, please contact us, and we will tell you the specific operation steps to help you connect Bluetooth
Safety Certifications
High Performance 36V Golf Cart Lithium Battery Conversion Kit
With an impressive continuous load power of 7.68kW and a usable energy capacity of 4.032kWh, this battery provides the energy you need for extended golfing sessions. Boasting a deep cycle life of over 4000 cycles and Grade A cells capable of handling discharge rates up to 2C, it offers exceptional longevity and efficiency. With a maximum continuous discharging rate of 200A, this battery ensures your golf cart performs at its best.
Eliminate Range Anxiety with Extended 50-Mile Range
Bid farewell to range anxiety with the Vatrer 36 volt golf cart battery. Experience the freedom of up to 50 miles on a single charge, ensuring worry-free and extended golfing adventures without the fear of running out of power.

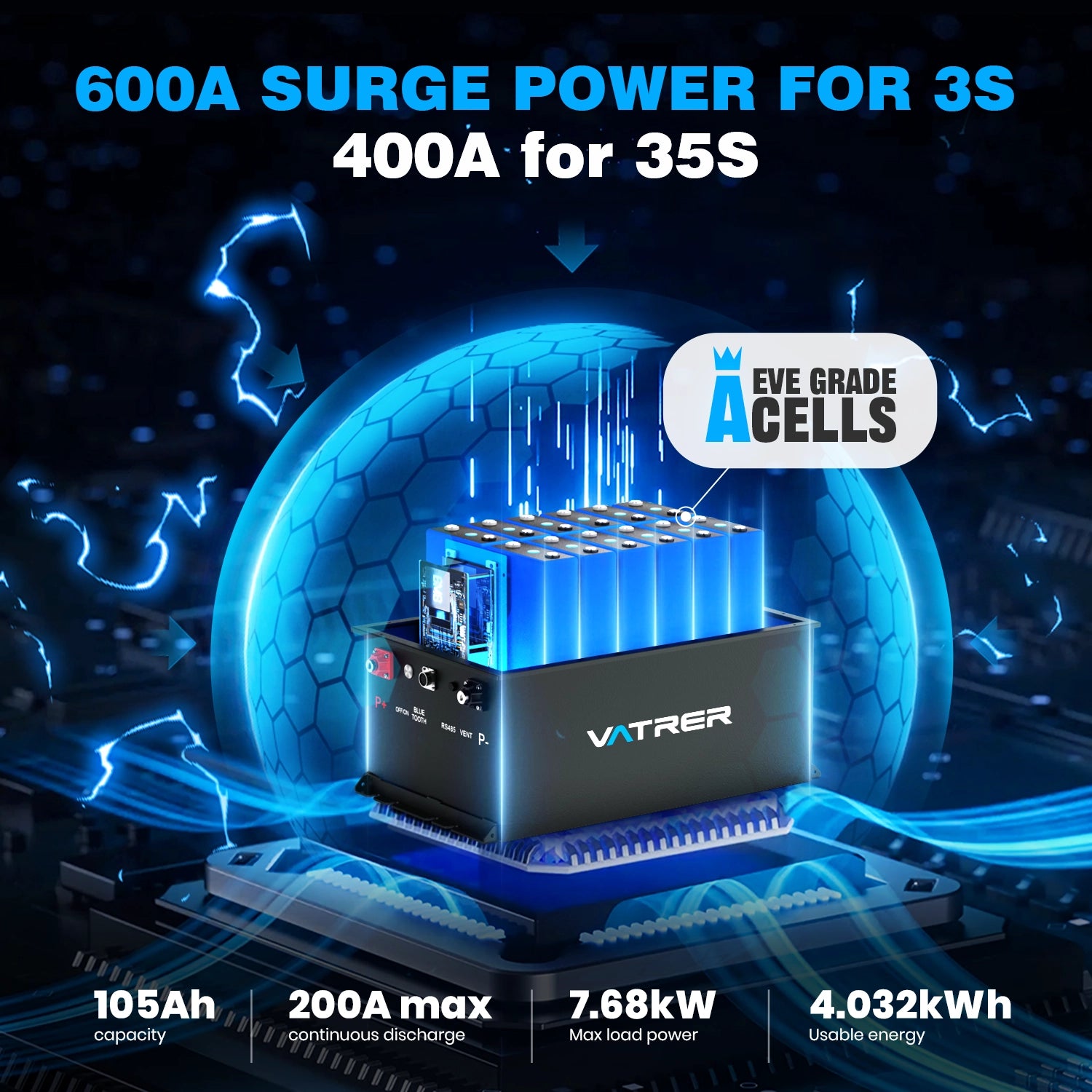

EVE Grade A Prismatic LiFePO4 Cells, Built-in 200A BMS
The Vatrer 36 volt lithium golf cart batteries offer advanced protection and high performance for your golfing needs. With overcharge and discharge protection, low and high-temperature protection, and overcurrent and short circuit protection, it ensures the safety and longevity of your battery. With a continuous discharge rate of 200A and a peak discharge rate of 400A for 35 seconds, it delivers exceptional power when you need it.
Efficient Bracket-Integrated 36V Golf Cart Battery with Secure Holding Design
Designed with a specialized bracket and secure openings, our 36V golf cart battery ensures optimal performance and reliability. The bracket is specifically engineered to securely hold the LCD screen, while the custom openings and included screws keep the battery firmly in place. Experience peace of mind knowing your golf cart battery is securely installed for seamless operation on the course.

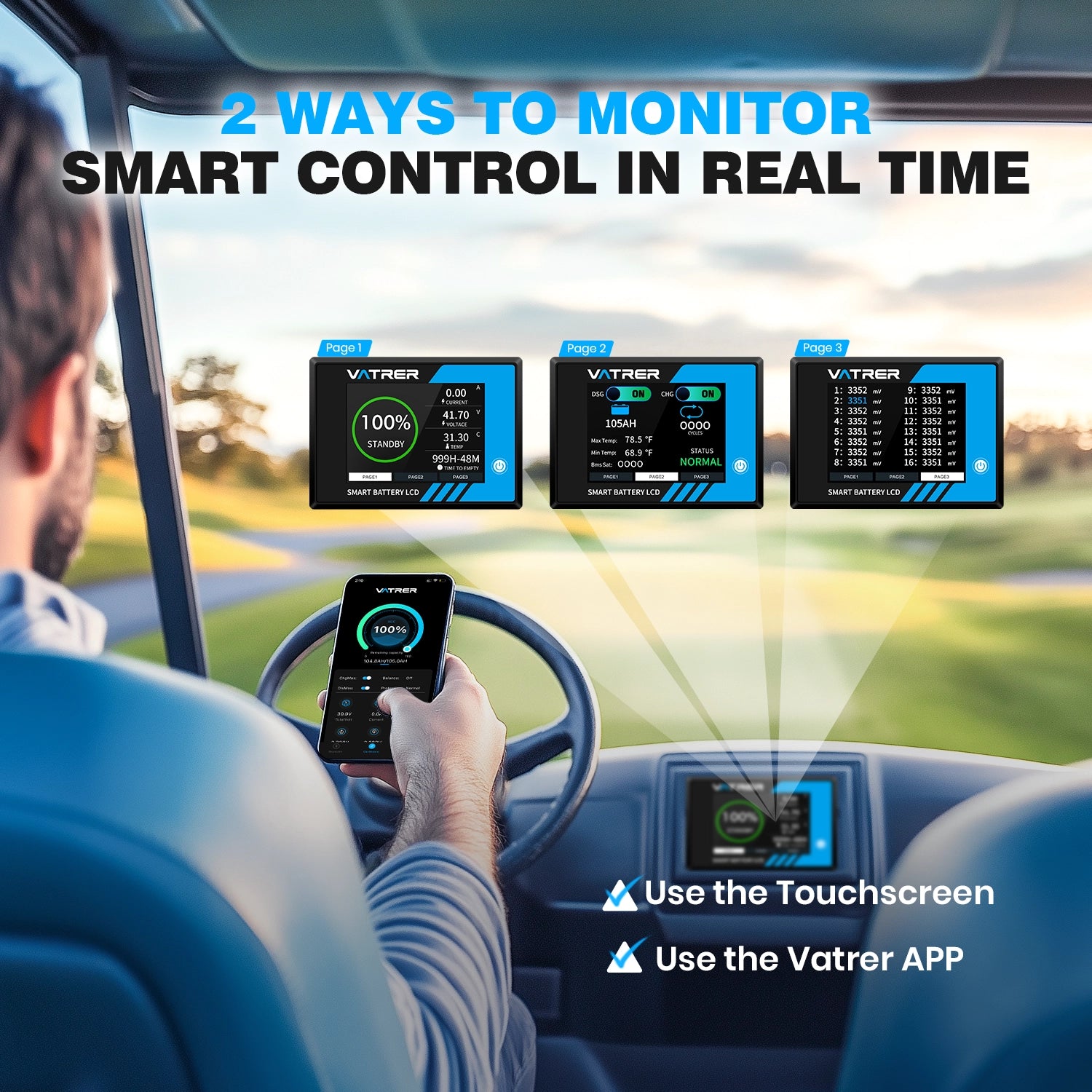

Real-time Parameters & Easy Control
Stay informed and take control with real-time monitoring, controllable charge and discharge modes, and voltage cell difference display. Maximize performance, optimize usage, and enjoy a lasting, efficient power source for your golf cart.
Portable, Easy Installation, and Efficient Ventilation
Its portable design with built-in handles makes it easy to carry. The screw hole feature ensures hassle-free installation. The battery also incorporates a ventilation system to safely vent internal gases. With its smart functionality, enjoy one-touch operation for seamless usage.
Temperature Protection for Optimal Performance
The Vatrer golf cart battery is equipped with advanced temperature protection features to ensure optimal performance in varying conditions. With low temperature cut-off protection during charging (0℃±4℃ / 32°F ±39.2°F) and discharging (-20℃土4℃ / -4°F ±39.2°F), it safeguards the battery from extreme cold. Additionally, high temperature cut-off protection during charging (65℃) and discharging (75℃) prevents overheating.
Suitable for All Street-legal Carts
Suitable for all street-legal carts, including golf carts, ATVs, and tour cars, this battery provides reliable and efficient energy for a variety of recreational vehicles.
36v Golf Cart Battery Wring Diagram
Advantage
- Built with LiFePO4 battery cells that are engineered to deliver superior performance & longevity.
- Built-in 200A Battery Management System (BMS) provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection.
- Comes with a 2.8-inch touch screen that you can view battery information in real-time on the LCD screen. And comes with a 43.8V 25A LiFePO4 charger, which supports fast charging.
- Providing 4000+ cycles compared to 300~500 cycles in the lead acid battery. Easier to carry and install.
- Connecting your battery to your smartphone for app monitoring, easy to know the lithium battery.
- Maintenance Free; Non-spill.
Warranty Policy
We provide warranty solution if used on power equipment such as golf carts, trolling machines, kayaks, etc.) warranty for all batteries. Our warranty solution warranty includes the following privileges if used correctly according to the manual :
We will assist in analyzing the customer's problem within 24 hours, help solve the problem, restore battery usage, and introduce the best use method.
If the problem cannot be resolved, we will send a new battery to replace the defective battery. And the defective battery needs to be returned to our warehouse and inspected and tested by our technical team.
| Specification | Value |
|---|---|
| LiFePO4 Battery | 38.4V 105Ah |
| Nominal Voltage | 38.4V |
| Charge Voltage | 43.8V |
| Weight | 38KG / 83.78LBs |
| Energy | 4032Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 200A (Peak 400A 35s) |
| Recommend Charge Current | 55A |
| Max Load / Inverter Power | 7680W |
| Discharger Cut-off Voltage | 40V |
| Operating Temperature Range |
Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 60°C (-4°F to 131°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
| Waterproof Class | IP65 |

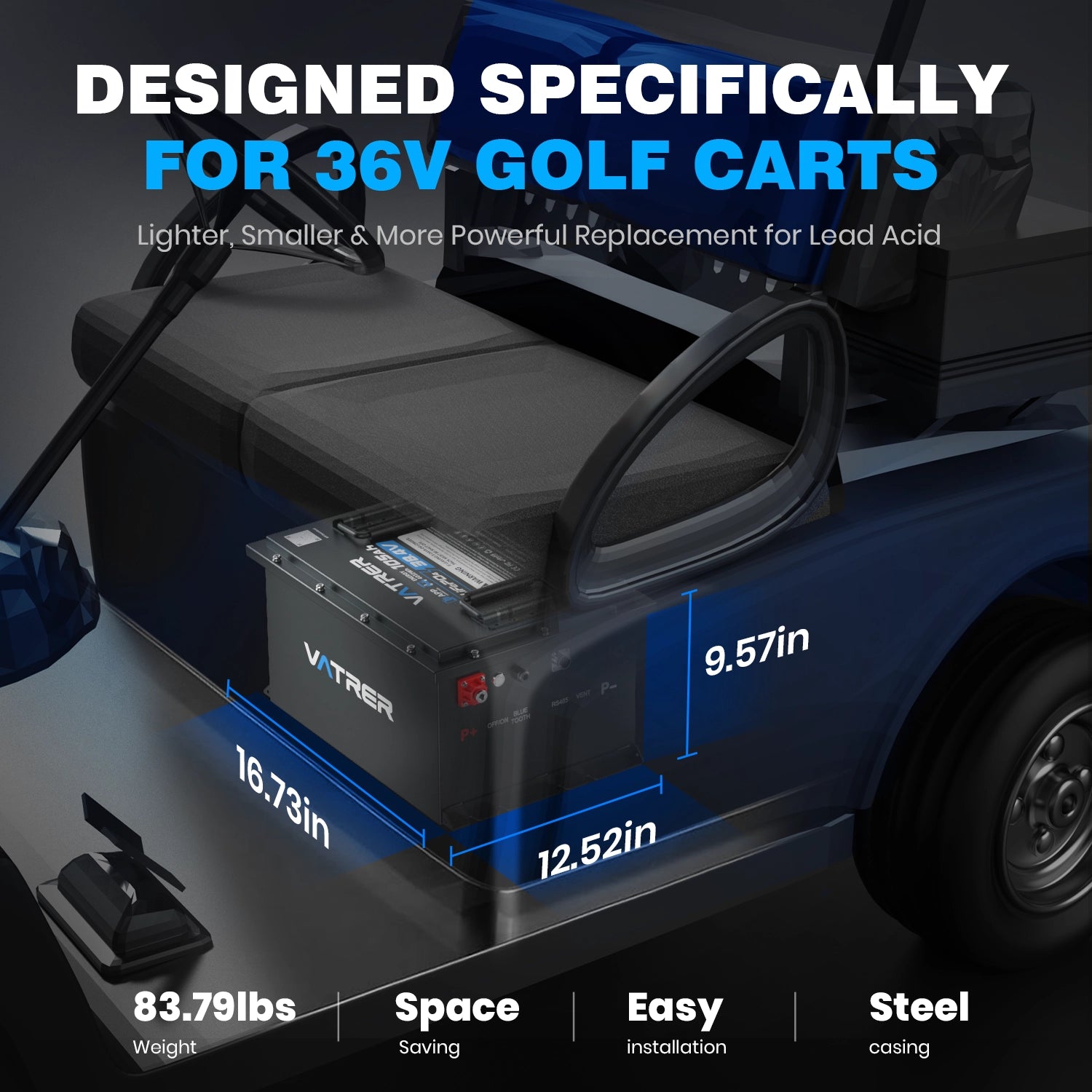

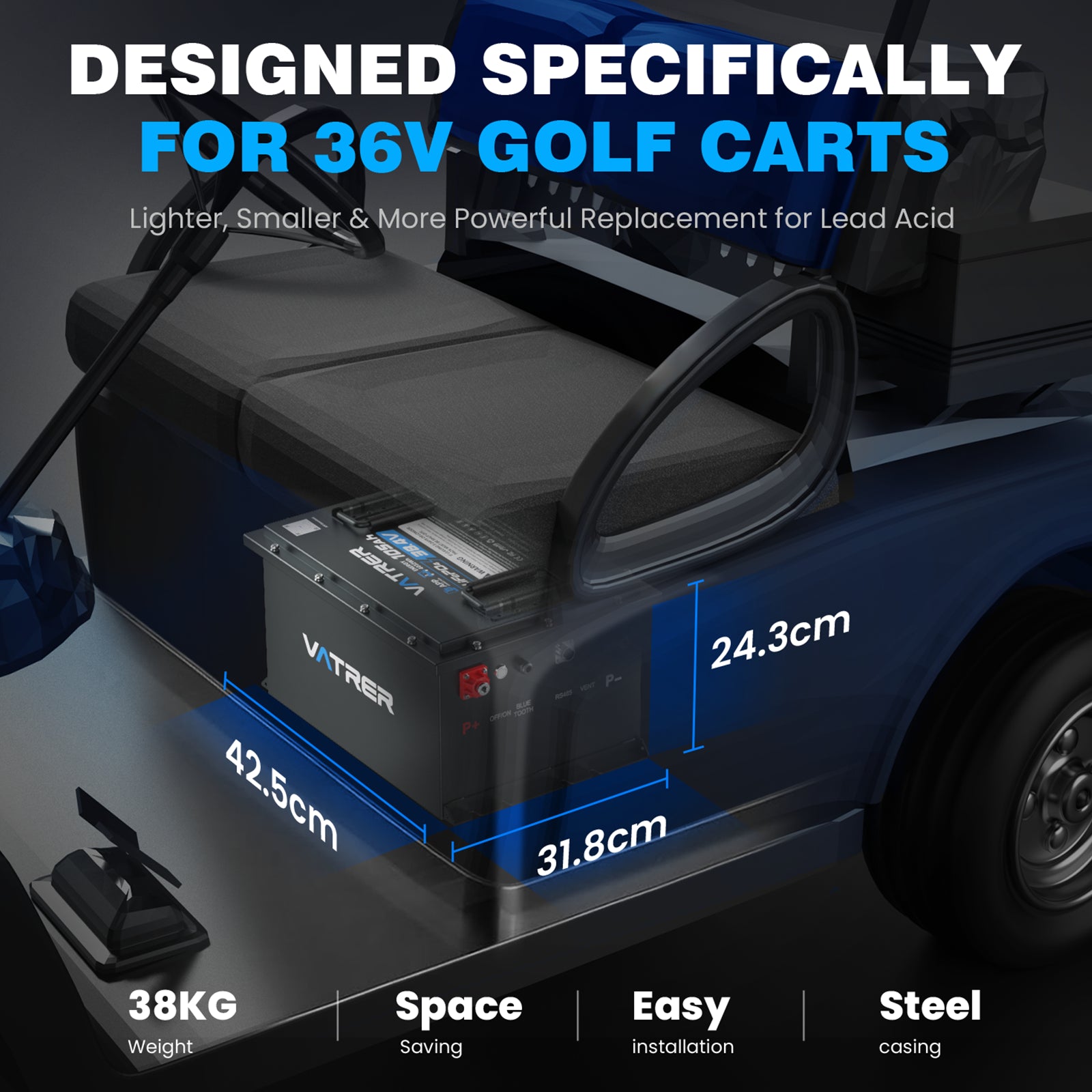

| Dimension | 433x334x230mm / 17x13.14x9.05inch |
| Cycle Life | ≥4000 Cycles |
| Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
| Accessories | 1x38.4V 105Ah Golf Cart Battery, 1x 43.8V 25A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables |
The connections on our 36V battery are crimped and have a very good internal construction. They are secured with nuts to the terminals for both positive and negative connections. The charger connects to the same lug with the same positive and negative terminals.
The golf cart battery has a continuous discharge current of up to 200A with a peak discharge current of 400A for a duration of 35 seconds.
To set up Bluetooth connectivity and monitor the charging status of your 36 volt lithium golf cart battery, please follow these steps:
- Search for the "xiaoxiang" app on your smartphone and install the xiaoxiangelectric App.
- Open the app and allow it to access Bluetooth on your device. You can choose to register an account or use guest mode to proceed.
- Once inside the app, you will find detailed instructions on how to connect your battery via Bluetooth and monitor its charging status.
Additionally, the charger will have a green light that flashes to indicate that it is charging. You can also check the display on the charger, which will show the charging current.
While we do not provide a specific matching mounting bracket for the golf cart, we include some screws with openings on the bottom of the battery. These screws can be used to securely hold the battery in place during installation.
The battery comes with a 43.8V 25A special charger included, so you do not need to purchase a new charger separately. This charger is specifically designed to properly charge the 38.4V 100Ah battery.
To contact us for assistance with Bluetooth setup or any other inquiries regarding your battery, please refer to our customer support channels. You can find our contact information on our website or in the documentation provided with the 36v golf cart battery.
