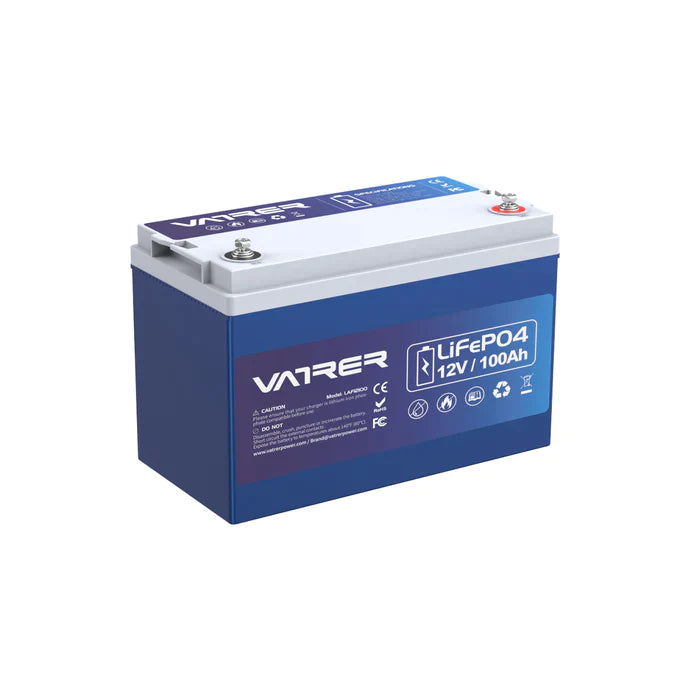

Vatrer 12V 100Ah Bluetooth LiFePO4 Lithium Battery with Low Temp Cutoff EU
Vatrer deep cycle LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.With high temp cutting off prevents charging over 167 °F (75°C) and Low temp cutoff protection . No matter what state the battery is, it can be used as soon as it is charged.
lithium battery manufactured by Automotive Grade LiFePO4 Cells with higher energy density, no memory effect, more stable performance and greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. Supporting IP65 waterproof and battery expansion for up to 4 series & 4 parallel and suitable for electric energy storage.
Our LiFePO4 lithium iron batteries battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery.
Highest-level safety based on UL Testing Certificate for the cell inside the battery.
With no acid in the lithium ion battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, golf cart, travel trailer, off-road and off-grid applications!

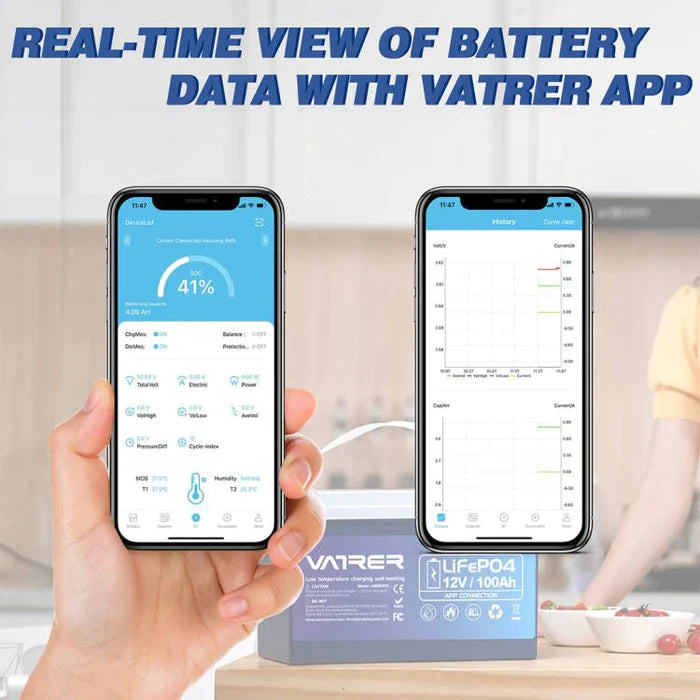

Gain valuable insights into your battery's performance with real-time monitoring by bluetooth. The XiaoXiangElectric app provides instant access to crucial information such as voltage, temperature, remaining capacity, and charging/discharging status. Stay informed and optimize your power usage effortlessly.
Safety Certifications
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 11KG / 24.2LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Batch: 0°C to 50°C (32°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C±4°C (32°F±39.2°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |

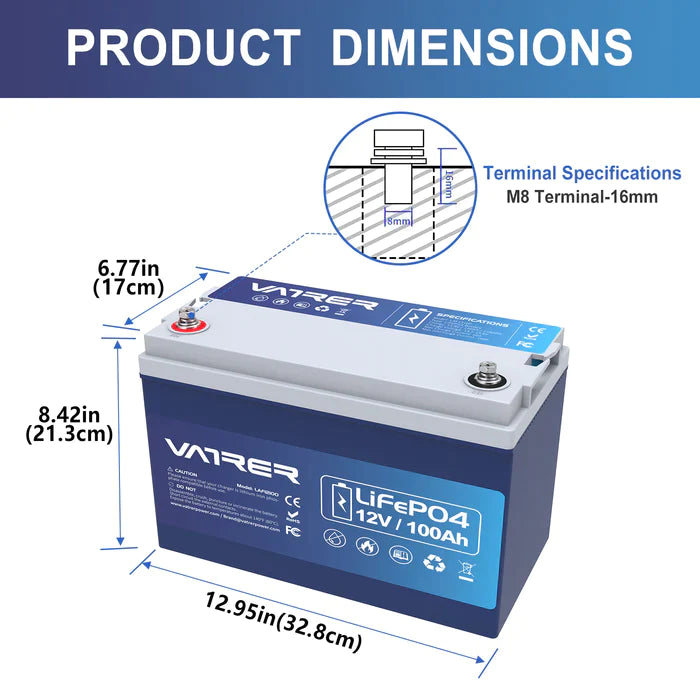

| Dimensions | 329x172x214 mm / 12.95x6.77x8.42 inches |
| Cycle Life | >=5000 cycles |

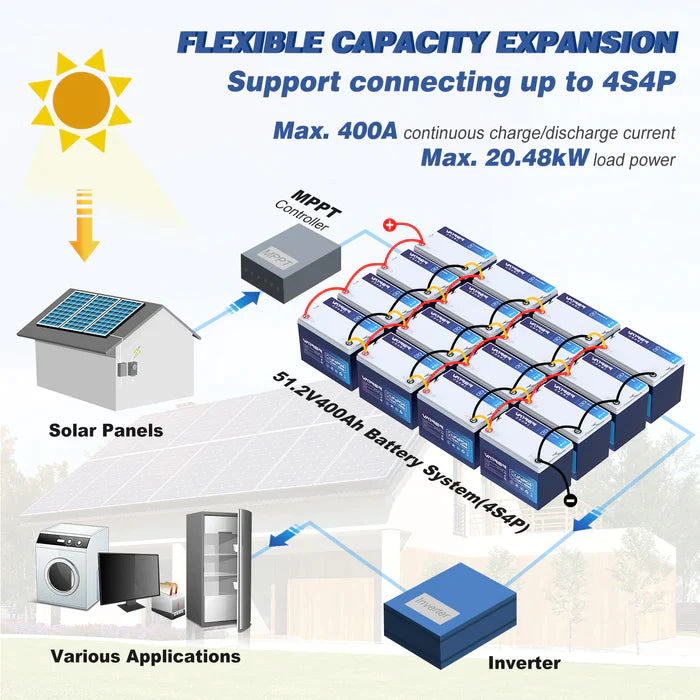

| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, indeed! Our LiFePO4 battery comes equipped with a BMS that includes low temperature protection cut-off functionality. This feature ensures that your battery remains safeguarded against any potential damage caused by extremely cold temperatures. The low temperature cut-off protection for charging is set at 0°C ± 4°C (32°F ± 7.2°F), while for discharging, it is set at -20°C ± 4°C (-4°F ± 7.2°F).
For optimal charging of our LiFePO4 battery, we recommend using a lithium iron phosphate 4-string (14.6V) charger. This specific charger is designed to provide the appropriate voltage and charging characteristics for LiFePO4 batteries. However, if you prefer alternative charging methods, you can also utilize photovoltaic solar panels with an MPPT charger or an inverter with a built-in AC to DC charging function.

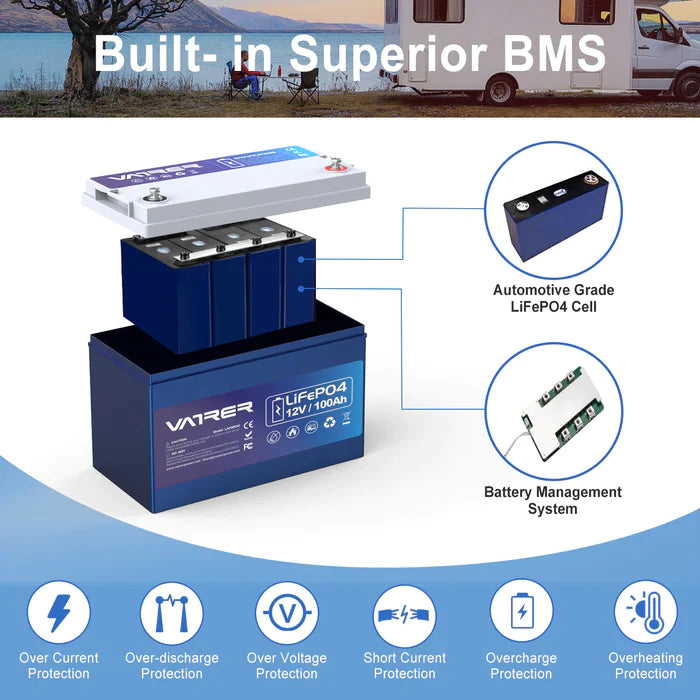

The BMS, or Battery Management System, plays a crucial role in the operation and safety of the LiFePO4 battery. It is responsible for various functions, including protecting the battery and the user from hazardous conditions such as low or high voltage, low or high temperatures, and short circuits. The BMS also ensures that all the cells within the battery pack remain balanced, allowing for optimal performance and longevity. Additionally, our BMS features a charge balancing function that reduces the charging rate for cells that have reached their capacity, enabling other cells to catch up and maintain the overall balance of the battery pack.
Our LiFePO4 lithium iron phosphate batteries have an impressive lifespan, providing a minimum of 5000 cycles at 100% depth of discharge (DoD). In more practical terms, this translates to a service life that is 8 to 10 times longer than standard lead-acid batteries. With proper care and usage, these batteries can serve you reliably for an extended period.
Regrettably, our LiFePO4 battery is not designed to be used for jump-starting vehicles. However, it can serve as a reliable power supply for automobiles. To recharge your car, you may connect it to the LiFePO4 battery using a Jackery power supply cord, which can be purchased separately.
